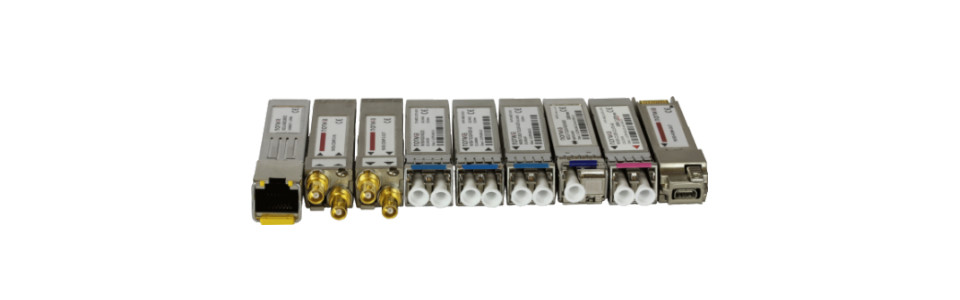

SFP MODULES

AutoSFP^®, your key to a flexible solutions

Norwia has a wide range of SFP's that have undergone extensive selection and testing procedures. Norwia SFP's are selected for their performance and price level to give the best possible solution for your critical applications. All Norwia SFP's have AutoSFP^® technology built in.

All Norwia SFP's have passed a rigorous quality control process that includes measurement and documentation procedures to ensure quality standards that are at the highest possible levels.

DUAL OPTICAL VIDEO TRANSMITTER

NV30-T1310-T1310-05

Dual Channel Optical Transmitter with AutoSFP^® functionality for SMPTE 297-2006 Video applications. This SFP is rated for medium-haul applications.

Download datasheet

DUAL OPTICAL VIDEO RECEIVER

NV30-R17-R17

Dual Channel Optical Receiver with AutoSFP^® functionality for SMPTE 297-2006 Video applications. This SFP is rated for medium-haul applications.

Download datasheet

OPTICAL VIDEO TRANSCEIVER

NV30-T1310-R17-05

Optical Transceiver with AutoSFP^® functionality for SMPTE 297-2006 Video applications. This SFP is rated for medium-haul applications.

Download datasheet

DUAL OPTICAL VIDEO TRANSMITTER

NV30-T1310-T1310-10/E

Dual Channel Optical Transmitter with AutoSFP^® functionality for SMPTE 297-2006 Video applications. This SFP is available in extended temperature version.

Download datasheet

DUAL OPTICAL VIDEO RECEIVER

NV30-R20-R20 / NV30-R20-R20/E

Dual Channel Optical Receiver with AutoSFP^® functionality for SMPTE 297-2006 Video applications. This SFP is available in standard and extended temperature versions.

Download datasheet

DUAL APD OPTICAL VIDEO RECEIVER

NV30-R30-R30

Dual Channel Optical Receiver with AutoSFP^® functionality for SMPTE 297-2006 Video applications. This SFP is built with APD receiver technology and is rated for long-haul applications.

Download datasheet

CWDM DUAL OPTICAL VIDEO TRANSMITTER

NV30-C1xxx-C1xxx-50

Dual Channel Optical CWDM Transmitter with AutoSFP^® functionality for SMPTE 297-2006 Video applications.

Download datasheet

CWDM OPTICAL VIDEO TRANSCEIVER

NV30-C1xx0-R20-50

Optical CWDM Transceiver with AutoSFP^® functionality for SMPTE 297-2006 Video applications.

Download datasheet

CWDM OPTICAL VIDEO TRANSCEIVER

NV30-C1xx0-R30-80

Optical CWDM Transceiver with AutoSFP^® functionality for SMPTE 297-2006 Video applications. This SFP is built with APD receiver technology and is rated for long-haul applications.

Download datasheet

UHDTV DUAL OPTICAL VIDEO RECEIVER

NV120-R14-R14

Dual Channel Optical Receiver for UHDTV applications. SD-/HD-/3G-/6G- and 12G-SDI is supported.

This SFP supports Norwia AutoSFP^® functionality.

Download datasheet

UHDTV DUAL OPTICAL VIDEO TRANSMITTER

NV120-T1310-T1310-10

Dual Channel Optical Transmitter for UHDTV applications. SD-/HD-/3G-/6G- and 12G-SDI is supported.

This SFP supports Norwia AutoSFP^® functionality.

Download datasheet

UHDTV CWDM DUAL OPTICAL VIDEO TRANSMITTER

NV120-C1xxx-C1xxx-40

Dual Channel Optical CWDM Transmitter for UHDTV applications. SD-/HD-/3G-/6G- and 12G-SDI is supported.

This SFP supports Norwia AutoSFP^® functionality.

Download datasheet

OPTICAL MADI TRANSCEIVER

ND01-T1300-R30-MM

Optical Transceiver with AutoSFP^® functionality for Multi Mode MADI applications.

Download datasheet

GIGABIT ETHERNET ELECTRICAL TRANCEIVER

ND12-GBE1000

Electrical 1000BASE-T Transceiver with AutoSFP^® functionality for Gigabit Ethernet (1.25Gbps).

Download datasheet

OPTICAL ETHERNET TRANSCEIVER

ND12-T1310-R20-10

Optical Transceiver with AutoSFP^® functionality for Gigabit Ethernet (1.25Gbps).

Download datasheet

BiDi OPTICAL ETHERNET TRANSCEIVER

ND12-T1xx0-R20-BiDi

Optical Transceiver with WDM BiDi and AutoSFP^® functionality for Gigabit Ethernet (1.25Gbps).

Download datasheet

CWDM OPTICAL ETHERNET TRANSCEIVER

ND12-C1xx-R25-40

Optical CWDM Transceiver with AutoSFP^® functionality for Gigabit Ethernet (1.25Gbps).

Download datasheet

10Gbit/s ETHERNET ELECTRICAL TRANCEIVER

ND99-GBE10G

Electrical 10GBASE-T Transceiver with AutoSFP^® functionality for 10G Ethernet (10Gbit/s).

Download datasheet

OPTICAL 10G ETHERNET MULTI MODE TRANSCEIVER WITH CDR

NC99-T850-R11-MM

Optical Transceiver with AutoSFP^® functionality for 10G Ethernet (10Gbit/s). There is also a CDR present to preserve excelent signal integrety. The 10GBASE-SR is supported with ranges up to 300m.

Download datasheet

OPTICAL 10G ETHERNET SINGLE MODE TRANSCEIVER WITH CDR

NC99-T1310-R14-10

Optical Transceiver with AutoSFP^® functionality for 10G Ethernet (10Gbit/s). There is also a CDR present to preserve excelent signal integrety. The 10GBASE-LR is supported with ranges up to 10km.

Download datasheet

LONG REACH CWDM OPTICAL 10G ETHERNET TRANSCEIVER

ND99-C1xx0-R14-40

Optical CWDM Transceiver with AutoSFP^® functionality for 10G Ethernet (10Gbit/s). Available wavelengths are from 1270nm to 1610nm with 20nm spacing. The 10GBASE-LR and 10GBASE-ER is supported with ranges up to 40km.

Download datasheet

EXTRA LONG REACH CWDM OPTICAL 10G ETHERNET TRANSCEIVER

ND99-C1xx0-R23-50

Optical CWDM Transceiver with AutoSFP^® functionality for 10G Ethernet (10Gbit/s). Available wavelengths are from 1270nm to 1450nm with 20nm spacing. The 10GBASE-ZR is supported with ranges up to 70km.

Download datasheet

EXTRA LONG REACH CWDM OPTICAL 10G ETHERNET TRANSCEIVER

ND99-C1xx0-R23-80

Optical CWDM Transceiver with AutoSFP^® functionality for 10G Ethernet (10Gbit/s). Available wavelengths are from 1470nm to 1610nm with 20nm spacing. The 10GBASE-ER and 10GBASE-ZR is supported with ranges up to 80km.

Download datasheet

Software Defined 3G-SDI IP-Gateway with ST2110 or ST2022/6

EB22LC2B-SN

The EB22LC2B-SN gateway enables seamless conversion between dual SMPTE data streams and two SDI signals at the equipment host interface. The module is 10GBASE-SR compliant with a high power laser transmitter and a high sensitivity PIN photodiode receiver, supporting multimode fiber with LC connectors.

Software defined functionality provides:

Encapsulation or De-encapsulation of either ST2110 or ST2022-6
Dual Channel
NMOS, EMBER+, or Restful API protocols

Optional Encapsulation Frame Synchronizer (ST2110 only)
Optional De-Encapsulation Clean Switch (ST2110 only)

This Software Defined SFP can store up to 4 configurations that can be loaded at any time (for example, ST2110 Encapsulation with NMOS as one configuration and ST2110 De-Encapsulation with EMBER+ as another). Each EB22LC2B-SN must be ordered with at least one configuration, additional configurations can be added at any time.

The available software options are:

EMOPT-2E-2110-EN - Dual channel 3G-SDI to ST2110 Gateway
EMOPT-2D-2110-EN - Dual channel ST2110 to 3G-SDI Gateway
EMOPT-2E-2022-6 - Dual channel 3G-SDI to ST2022-6 Gateway
EMOPT-2D-2022-6 - Dual channel ST2022-6 to 3G-SDI Gateway

Software add-on options (ST2110 only):

EMOPT-ADD-2E-2110-FS - Frame Sync, Encapsulator
EMOPT-ADD-2D-2110-CS - Clean Switch, De-Encapsulator

Configuration and IP flow routing can be achieved via the miniHUB WEB page, or the module can be controlled in-band through the network. This SFP module offers a powerful migration path from SDI to IP for both existing and new miniHUB installations.

The EB22LC2B-SN IP-Gateway technology is delivered by Embrionix and is compatible with the miniHUB AutoSFP^® functionality.

Download datasheet

HDMI OUTPUT

NV30-HDMI-OUT

SD-/HD-/3G-SDI to HDMI Converter with no scaling artifacts and AutoSFP^® functionality.

Download datasheet

CVBS Coaxial Encoder / Decoder for PAL/NTSC

NV03-CVBS-IO

SD-SDI to Composite Encoder/Decoder for PAL/NTSC with AutoSFP^® functionality. Perfect for legacy support when digital system upgrades have been done.

Download datasheet
